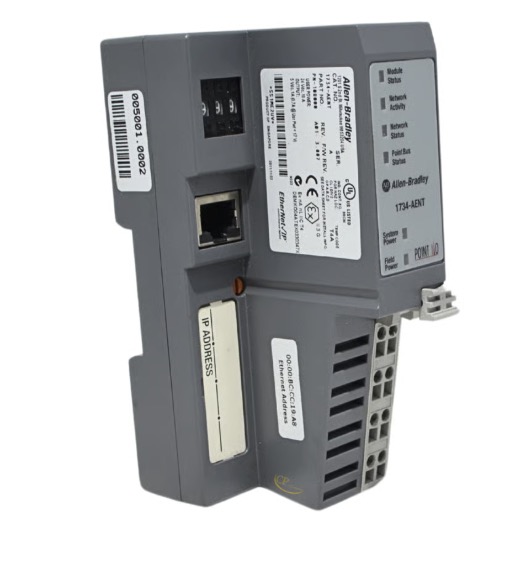

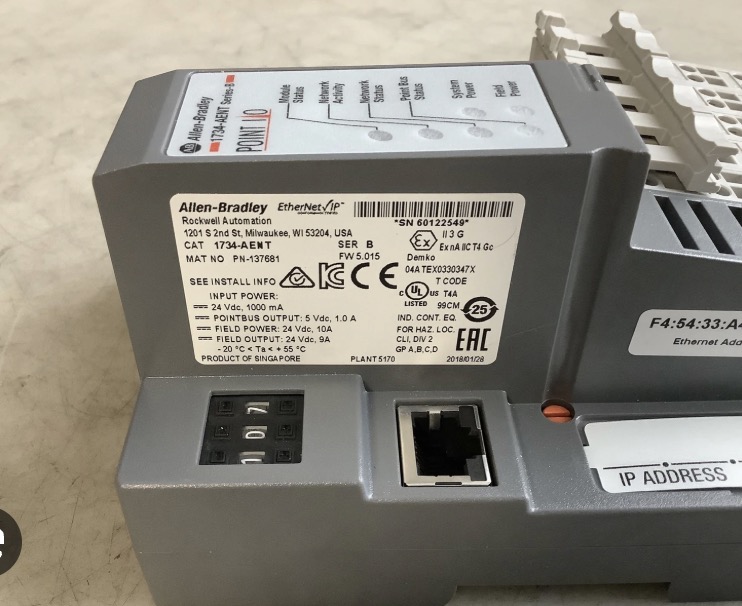

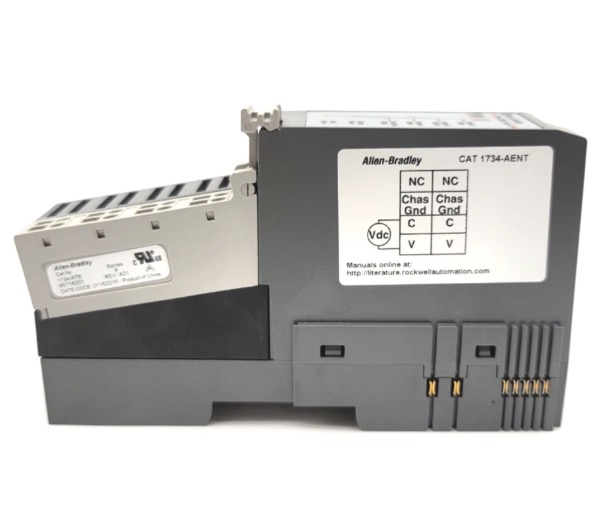

Allen Bradley 1734-AENT

Wanpeis ® provides you with Allen Bradley 1734-AENT from in Stock, which is an Ethernet adapter module of the Point I/O series. You can understand it as "translation" and "transportation hub". It connects the local 1734 Point I/O module (such as digital input/output, analog input/output, thermocouple, RTD, etc.) to the Ethernet /IP network. As a node on an Ethernet /IP network, it enables upper-layer controllers (such as Rockwell's ControlLogix or CompactLogix PLC) to read, write and control remote I/O points via Ethernet.

Product parameters

Product line: Allen-Bradley POINT I/O

Module type: EtherNet/IP adapter

Input voltage: Backplane power supply (10-30V DC), provided by the adjacent 1734-TB or 1734-TBS terminal base.

Network ports: 2, RJ45, 10/100 Mbps adaptive.

Protocol: EtherNet/IP (CIP)

The maximum number of I/O modules per node: 63

Power consumption: The backplane has a maximum of 65 mA @ 5V DC

STATUS indicator lights: STATUS, NETWORK, LINK 1, LINK 2

Application scenarios

Allen Bradley 1734-AENT is suitable for applications that require distributed and modular I/O solutions, especially when the main controller is located at a distance or when I/O points need to be installed nearby the equipment.

Distributed control stations on the production line

Local I/O control of large-scale mechanical equipment (such as packaging machines and filling machines)

Signal acquisition points in process control

Building automation

Any industrial environment that requires the utilization of EtherNet/IP networks for efficient and real-time control.

Usage Tutorial

Software configuration

In Rockwell's Studio 5000 Logix Designer software, find Allen Bradley 1734-AENT on the network via EtherNet/IP driver.

Add it to your I/O configuration tree.

The software will automatically identify all the I/O modules connected under it. You can define label names for these modules and then perform logical control in the PLC program.

Advantages of choosing us

I understand your concern about the price. However, we believe that the total cost of ownership (TCO) of a product is more important than the unit price. Our advantages lie in:

Genuine products from the source, no risks: All of our products are sourced from regular channels and come with a complete warranty. You can avoid production line downtime losses caused by module failures, which may far exceed the price difference of the modules themselves.

"Spot stock, quick delivery: We have safety stock in place to help you secure precious production time." Time is money.

Professional support, worry-free and effortless: We offer comprehensive technical documentation and selection support to prevent you from suffering subsequent troubles and costs due to choosing or using the wrong product.
